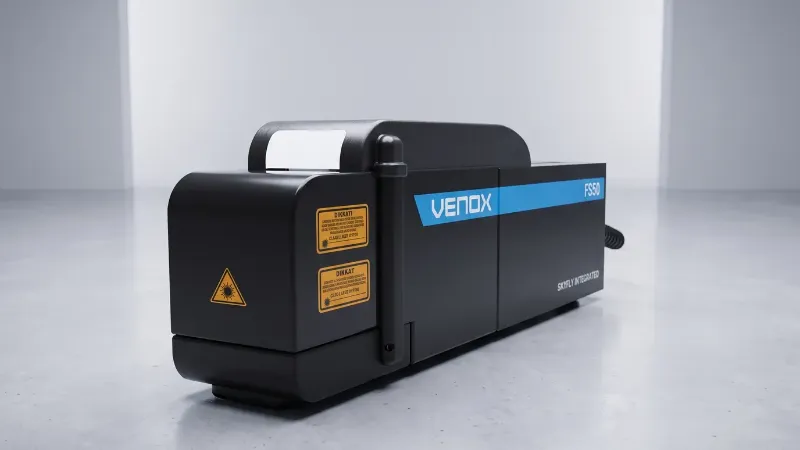

Automation Integration with Laser Marking Systems
Laser marking systems can be used as standalone marking stations or integrated into automated production lines to create faster, more controlled, and traceable manufacturing processes. Through integration with PLCs, conveyors, robotic arms, sensors, cameras, barcode readers, and production software, products can be marked automatically with minimal operator intervention.
In mass production, not only marking quality but also marking the correct product with the correct data at the right time is important. Therefore, automation integration with laser marking systems offers significant advantages not only in increasing production speed but also in reducing data errors, improving product traceability, and making quality control processes more systematic.
How Are Laser Marking Systems Integrated into Automation?
Marking Processes Can Be Controlled Through PLC Integration
PLC systems are among the fundamental control components of industrial automation lines. By communicating with a PLC, a laser marking system can operate automatically according to commands received from the production line.
When a product reaches the marking station, the PLC can send a start signal to the laser system. Once marking is completed, the system can send a process completion signal to the PLC, allowing the product to proceed to the next production stage.
This structure allows the marking process to be synchronized with the overall cycle time of the production line.
Automatic Marking on Conveyor Lines
Marking products moving along a conveyor is one of the most common automation applications of laser marking systems. When a product reaches the designated marking position, it can be detected by a sensor, and the marking process can start automatically.
Depending on the application, the product may be stopped during marking, or marking may be performed while the product is moving in suitable systems. The appropriate method should be determined according to product speed, marking content, and the required quality.
Conveyor integration can provide significant efficiency improvements, particularly in high-volume mass production, packaging, automotive component manufacturing, and electronic product lines.
Flexible Laser Marking with Robotic Arms
Robotic systems can be used for three-dimensional products or products with different surfaces where fixed marking stations are insufficient. A robotic arm can move the product into the laser marking area or position the marking head at different locations on the product.
This configuration provides flexibility in applications requiring the marking of different surfaces on the same part or the processing of different product models on a production line.
In robotic integration, product positioning, laser focal distance, and safety zones must be carefully planned.
Product Detection and Position Control with Sensors
In automated marking systems, the position of the product within the marking area must be reliably detected to ensure that the laser operates at the correct time. Optical sensors, proximity sensors, or other detection equipment can be used for this purpose.
When the sensor detects a product, a trigger signal is sent to the system. This can prevent unnecessary laser operation when no product is present or the marking of a part positioned incorrectly.
In precision applications, not only the presence of the product but also whether it is positioned correctly can be verified.
Visual Inspection with Camera Systems
Camera systems can be used in laser marking automation for both product positioning and marking quality control. Vision systems can detect product geometry and help position the marking area at the correct location.
After marking is completed, the camera can check the presence of the marked text or code. In QR code, DataMatrix, or barcode applications, code readability can be verified automatically.
Incorrectly marked products can be automatically rejected, or the production line can alert the operator.
Data Integration with ERP and MES Systems
One of the important functions of laser marking systems within automation is ensuring that the correct data is marked on the correct product. Production orders from ERP or MES systems can be transferred to the laser marking software.
Serial numbers, lot codes, product models, customer information, dates, or other variable data can be retrieved automatically from a database. This reduces the need for operators to enter marking content manually.
This integration helps prevent errors caused by incorrect data entry and improves product traceability.
Serial Numbers and Variable Data Can Be Generated Automatically
In mass production, each product may need to be assigned a different serial number. Laser marking software can automatically increment the serial number with each cycle or retrieve it from a central database.
The same method can be used for variable information such as production dates, shift codes, lot numbers, QR codes, or DataMatrix content.
This makes it possible to uniquely identify each component in high-volume production.
Automatic Code Reading and Verification
Simply having a laser-marked code visible on the surface may not be sufficient. The code must also be reliably readable by automatic readers.
A camera or code reader installed after the marking station can read barcode, QR code, or DataMatrix information and compare it with the expected data in the system.
If the code cannot be read or the data does not match, the product can be rejected. This prevents incorrectly identified products from proceeding along the production line.
What Should Be Considered in Automation Integration?
Successful laser marking automation requires evaluating not only the laser equipment but also the entire production line.
- Product cycle time should be determined.
- The marking area and product position should be analyzed.
- The PLC communication structure should be planned.
- Sensor and trigger points should be identified.
- ERP or MES data flow should be defined.
- The serial number and variable data structure should be determined.
- Camera and code verification requirements should be evaluated.
- Robot or conveyor integration should be planned.
- Laser safety zones and operator safety should be considered.
- Cycle and marking tests should be performed using actual products.
Evaluating these criteria before investment enables the marking system to be integrated into the production line more reliably and efficiently.
Automation-Integrated Laser Marking Solutions with Venox
In addition to standalone marking applications, Venox offers Laser Marking Systems that can be integrated into automation systems. An appropriate system can be configured by evaluating product characteristics, production speed, marking content, PLC infrastructure, and data integration together.
If you require conveyor line integration, robotic applications, camera verification, or variable data marking, you can discuss your production scenario with the Venox team. For technical evaluation, sample testing, or quotations, you can contact us through the Contact Us page.
Properly configured laser marking automation helps manage product detection, data transfer, marking, code verification, and production records within a single process. This makes speed, traceability, and quality control more systematic in mass production.
Frequently Asked Questions
Can a laser marking system work with a PLC?
Yes. With suitable communication infrastructure, operations such as starting the marking process, sending product information, and receiving process results can be performed through a PLC.
Can a laser marking system be integrated into a conveyor?
Yes. Using sensors and control equipment, products on a conveyor can be detected and marked automatically.
Can laser marking be performed using a robot?
Yes. A robotic arm can position the product or laser head correctly, enabling automatic marking on different surfaces.
Can a marked QR code be verified automatically?
Yes. Camera or code reader systems can automatically verify the readability and data accuracy of QR codes, DataMatrix codes, and barcodes.
Does Venox offer automation-integrated laser marking systems?
To explore Venox's solutions, you can visit the Laser Marking Systems page or contact the Venox team through the contact page to discuss your automation project.
